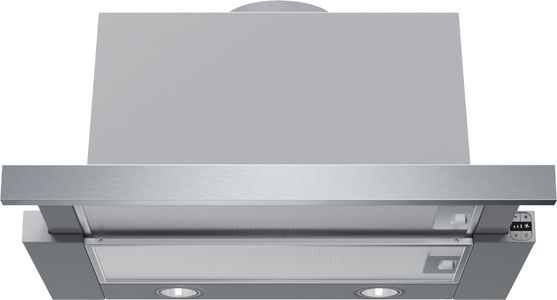

Bosch 500 Series 24" Stainless Steel Pull-Out Under Cabinet Range Hood

Bosch

Model #:

HUI54452UC

Model #: HUI54452UC
544561
Bosch
$1,599.00

At a Glance

Product Dimensions 11.81"h x 23.56"w x 11.81"d

This sleek pull-out hood allows the user to close the hood when not in use and it installs flush with cabinetry. Four speed touch controls with LCD display. Dishwasher safe aluminum mesh filters.Read More

$1,599.00
$1,859.00Save $260.00

Get to know this product.

Product Overview

Product Overview

This sleek pull-out hood allows the user to close the hood when not in use and it installs flush with cabinetry.

Touch controls with LCD display.

400 CFM integrated blower included.

Converts to recirculation mode with accessory kit (separate purchase required).

Design

Visor is fully extended during use

Performance

Bright LED lighting shines throughout the cooking surface

6" Round Duct at Discharge

Efficiency

Absorb odors with charcoal replacement filters

Convenience

Convenient timer built into control from 1-60 minutes

Signal on LCD display will illuminate as a reminder to check filters for cleaning

Audible tone when select controls are pressed

Useful Documents
Manual
Installation
Spec Sheet
Specifications

General Specs

Width (in.)23.56
Height (in.)11.81
Duct Size (in.)6
Depth (in.)11.81
CollectionSérie 500
ColorStainless Steel
Appliance Fit Width (cm.)60
Color Finish NameStainless Steel
Range Hood TypeUnder Cabinet
ENERGY STAR CertifiedNo
Appliance Fit Width (in.)24
Product Weight (lbs.)24
Maximum CFM400
Width (cm)59.84
Height (cm.)30
Depth (cm.)30
Product Weight (kg)10.89
Voltage120
Frequency60
Range Hood FeaturesRetractable
Ventilation TypeConvertible (Both)

General Properties

Operating modeConvertible: ducted / recirculating
Number of speed settings4-stage
Motor locationIntegrated motor in hood body
Number of lights2
Total power of the lamps (W)4 W
Damper includedYes
Grease filter materialAluminum
Grease filter typeMultilayer cassette

Technical Details

Plug type120V-3 Prong
Power cord length (in.)45 1/2"

Dimensions

Required distance above cooktop/range cooking surface24"-34" electric / 29 1/2"-34" gas
