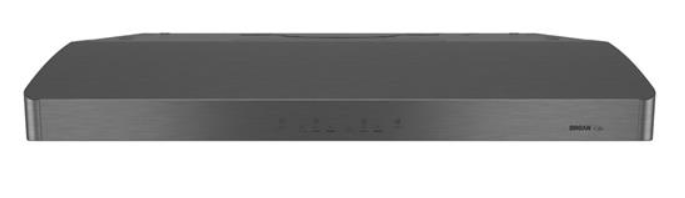

Broan® Elite Corteo™ 30" Black Stainless Steel Under Cabinet Range Hood

Broan

Model #:

ERLE130BLS

Model #: ERLE130BLS

566409

Broan

$899.00

At a Glance

Product Dimensions 5"h x 29.88"w x 21"d

Air quality is a top concern for today’s families. The Broan series, with its superior capture efficiency, is the ideal solution. This model is sure to win over even the most demanding users with its innovative design, advanced technology, and unmatched performance.Read More

$899.00

$1,199.00Save $300.00

What We Offer

Protect Your Purchase

View Options

None Selected

Request More Info

Get to know this product.

Product Overview

The uncompromising choice

Captur™ exclusive system that provides faster smoke & odor removal

3-speed, whisper touch infrared control

3-level lighting built-in LED modules (2) that provide an even lighting over the cooktop

Two ultra efficiency hybrid baffle filters, easy to clean

Filter clean reminder

10 minute delay off setting

Automatic heat sensor function

Performant dual blower

Quietest range hood offering a sound level of <0.3 sone at low speed

Use charcoal filter HPF30 for a non-ducted installation

EZ 1 brackets make it easy for single-person installation in less than half the time of traditional methods

ADA compliant, remote operation is possible using a standard UL approved momentary wall switch. Requires ADA Wiring Kit.

Useful Documents

Specification Sheet

Installation Guide

Catalog Sheet

Additional Information

Specifications

General Specs
Width (in.)	29.88
Height (in.)	5
Duct Size (in.)	3.25 x 18
Depth (in.)	21
Collection	Elite Corteo
Color	Black Stainless Steel
Appliance Fit Width (cm.)	76
Manufacturer Warranty	1 Year / 3 Year LED Modules
Color Finish Name	Black Stainless Steel
Range Hood Type	Under Cabinet
ADA Compliant	Yes
ENERGY STAR Certified	No
Appliance Fit Width (in.)	30
Maximum CFM	650
Bulb Type	LED
Grease Filter Type	Baffle
Sones Rating	0.3 - 8.0
Fan Speed Options	3
Height Above Cooktop	24 - 30
Width (cm)	75.9
Height (cm.)	12.7
Depth (cm.)	53.34
Height Above Cooktop Centimeter	60.96 - 76.20
Voltage	120
Amp	1.9
Frequency	60
Range Hood Features	Ductless Capable, Filter Indicator, Heat Sensor
Noise Level (Sones)	Standard - (High)
Ventilation Type	Ducted
More Information:
Boost Mode	No
Category	Premium $$$$
Control Type	3-speed, whisper touch infrared control
Ducting Size	3-1/4 in X 14 in (H-V) or 7 in Round
Filter Type	Ultra Efficiency Hybrid Baffle Filters
Heat Sentry™ Automatic Heat Sensor	Yes
Lighting Intensity	3
Lighting Type	Two built-in LED modules
Non-Ducted Re-circulation Capable	Yes
Optional Control	No
Series	Corteo
Ventilation Speeds	3
